High Speed Low Temperature -60ºC Electric Actuator with Bluetooth Connection for Valve Control

Cantidad Mínima De Pedido:	1
Precio:	400

Información Detallada

Descripción del Producto

Información Detallada

Número de modelo:

Serie DQ

Temperatura de funcionamiento:

-60°C a +70°C

Tipo de conexión:

Brida

Material del cuerpo:

aleación de aluminio

Tipo de motor:

Motor eléctrico

Opciones de voltaje:

380 V/110 V/220 V/440 V/660 V CA o 12 V/24 V CC

Frecuencia nominal:

50Hz/60Hz

Método de control:

encendido-apagado o modulante

entrada de señal:

4-20mA

Servicio de motor:

S2 10 min, 15 min, 30 min o S1/S3/S4/S6 24%,40%

Grado de protección:

IP65/IP67/IP68

Nivel de aislamiento:

Nivel F

Tipo de gabinete:

NEMA 4/4X/7 y 9

Humedad relativa:

≤ 95% a +25°C

Prueba de explosión:

ATEX/Exd BT4/CT4

Resaltar:

High Speed Electric Actuator

Low Temperature -60ºC Rotary Actuator

Bluetooth Connection Electro Mechanical Actuator

Descripción del Producto

High Speed Low Temperature -60º C Barber Colman Electro Mechanical Actuator for Cut-off Valve

Chenglei manufactures the quarter turn electric rotary actuator DQ Series with valve worm reduction box. It is designed for various valve types including damper, plug valve, gate valve, globe valve, throttle valve, ball valve, butterfly valve, slide plate gate, adjusting valve, regulating valve, and HVAC applications.

Key Specifications

Voltage options: 380V/110V/220V/440V/660V AC or 12V/24V DC (single or three phase)
Rated frequency: 50Hz/60Hz
Control methods: On-off or modulating (4-20mA)
Protocols: Profibus, Profinet, Modbus, HART, FF, Device net, ESD
Motor duty: Short time (S2 10min/15min/30min) or continuous time (S1/S3/S4/S6 24%/40%)
Connection types: JB2920 Torque type or ISO5210 (GB/T 12222) Thrust flange type
Protection grade: IP65/IP67/IP68 options
Insulation level: F level
Certifications: CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost
Enclosure options: NEMA 4/4X/7&9 models
Environmental temperature: -20 to +60°C (special orders -60 to +70°C)
Relative humidity: ≤95% (at +25°C)
Explosion proof: ATEX/Exd BT4/CT4
Anti-corrosion coating: electrostatic powder spraying
Body materials: Aluminum alloy, stainless steel, or carbon steel
Optional features: High speed, high torque, adjustable speed, battery backup, Bluetooth, local/remote control
Standard features: Heater with thermostat, manual override with handwheel

Product Images

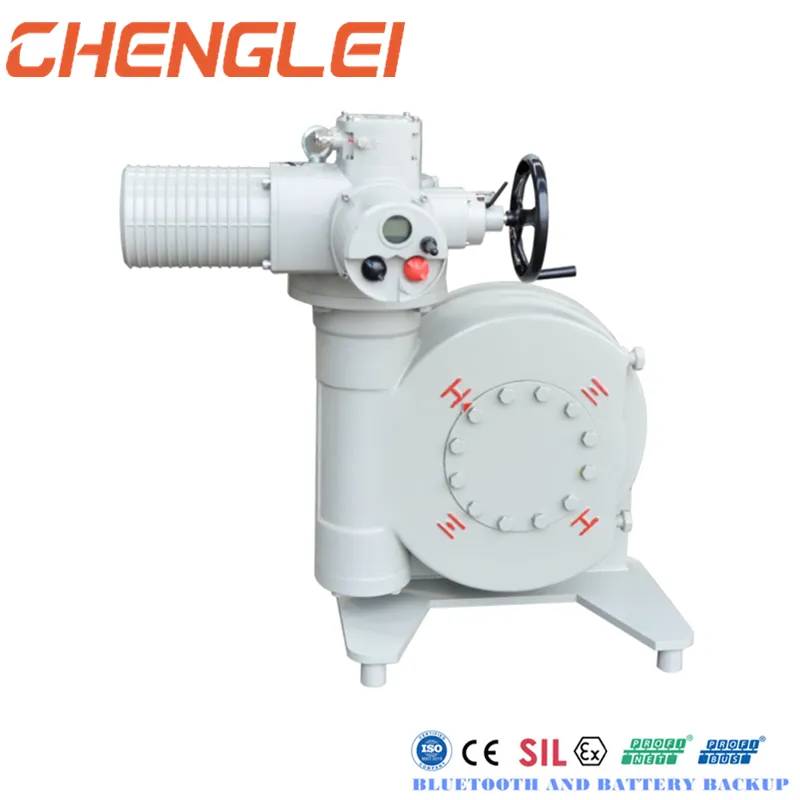

High Speed Low Temperature -60º C Barber Colman Electro Mechanical Actuator

About Chenglei

Electric actuator and valve worm gear box experts since 2004 with over 20 years of industrial experience
Complete industry valve, damper, and HVAC automation solutions
Certifications: CCC/CE/EAC/IECex/SIL/CNEX explosion proof
Special features: Battery backup, Bluetooth wireless connection, infrared remote control, split type remote control
Operational in extreme temperatures from -60°C to +70°C
Available in part-turn and multi-turn versions
On-off & modulating control options

Frequently Asked Questions

Q1. What is the lead time for the explosion proof motorized 360 degree multi-turn electric actuator for valve?

A: 3-30 working days for mass electric actuator production.

Q2. Is it OK to print my logo on your 90 partial-turn electric actuator?

A: Yes. Please inform us formally before our electric actuator production.

Q3. Do you offer guarantee for the electric actuator?

A: Yes, we offer 18 months warranty for rotary electric actuators.

Q4. What is your MOQ for the electric actuator?

A: 1 unit electric actuator.

Q5. How to deal with the rotary electric actuator faulty?

A: Firstly, our electric actuators are produced under strict quality control with a defective rate less than 0.2%.
Secondly, during the guarantee period, we will send replacements with new orders for small quantities.
For defective batches, we will repair and resend the actuators or discuss solutions including recall based on the actual situation.
